產品規格表

產品特性

應用領域

曲線圖片

平凹球面透鏡列表
產品型號	有效焦距EFL(mm)	外圓直徑Dia(mm)	曲率半徑R1(mm)	后焦距BFL(mm)	中心厚度Tc(mm)	邊緣厚度Te(mm)
SJPA0618	-18.00	6.00	-9.27	-19.32	2.00	2.50
SJPA0624	-24.00	6.00	-12.36	-25.32	2.00	2.40
SJPA0927	-27.00	9.00	-13.91	-28.32	2.00	2.70
SJPA1225	-25.00	12.70	-12.88	-26.98	3.00	4.70
SJPA1230	-30.00	12.70	-15.45	-31.98	3.00	4.40
SJPA1250	-50.00	12.70	-25.75	-52.31	3.50	4.30
SJPA2550	-50.00	25.40	-25.75	-52.31	3.50	6.90
SJPA2575	-75.00	25.40	-38.63	-77.31	3.50	5.60
SJPA25100	-100.00	25.40	-51.51	-102.64	4.00	5.60
SJPA5075	-75.00	50.80	38.63	-77.31	3.50	13.00
SJPA50100	-100.00	50.80	-51.51	-102.64	4.00	10.70
SJPA50150	-150.00	50.80	-77.26	-152.64	4.00	8.30
SJPA50100KD	-100.00	50.00	-51.68	-103.30	5.00	11.04
SJPA50125KD	-125.00	50.00	-64.60	-128.30	5.00	9.72
SJPA75150KD	-150.00	75.00	-77.78	-153.30	5.00	14.63
SJPA75200KD	-200.00	75.00	-103.70	-203.30	5.00	12.01
SJPA100200KD	-200.00	100.00	-103.70	-203.95	6.00	18.85
SJPA100250KD	-250.00	100.00	-129.63	-253.95	6.00	16.03
SJPA100300KD	-300.00	100.00	-155.56	-304.08	6.20	14.45
SJPA100400KD	-400.00	100.00	-207.40	-405.40	8.20	14.32
SJPA100500KD	-500.00	100.00	-259.26	-505.27	8.00	12.87
SJPA100600KD	-600.00	100.00	-311.11	-606.32	9.60	13.64
SJPA125300KD	-300.00	125.00	-155.56	302.77	4.20	17.30
SJPA125400KD	-400.00	125.00	-207.40	-403.69	5.60	15.24
SJPA125500KD	-500.00	125.00	-259.26	-504.60	6.00	13.64
SJPA125600KD	-600.00	125.00	-311.11	-606.32	9.00	15.34
SJPA125700KD	-700.00	125.00	-362.96	-705.53	8.40	13.82
SJPA125800KD	-800.00	125.00	-414.82	-806.32	9.60	14.34
SJPA150400KD	-400.00	150.00	-207.41	-403.29	5.00	19.03
SJPA150500KD	-500.00	150.00	-259.26	-504.11	6.20	17.29
SJPA150600KD	-600.00	150.00	-311.11	-604.94	7.50	16.68
SJPA150700KD	-700.00	150.00	-369.96	-705.76	9.00	16.83
SJPA150800KD	-800.00	150.00	-414.82	-805.27	8.00	14.84
SJPA200500KD	-500.00	200.00	-259.26	-504.33	6.57	26.63
SJPA200600KD	-600.00	200.00	-311.11	-605.14	7.80	24.31
SJPA200700KD	-700.00	200.00	-362.96	-706.06	9.20	23.25
SJPA200800KD	-800.00	200.00	-414.82	-806.91	10.50	22.73
SJPA200900KD	-900.00	200.00	-466.67	-907.77	11.80	22.64
SJPA2001000KD	-1000.00	200.00	-518.52	-1008.63	13.10	22.83
SJPA250700KD	-700.00	250.00	-362.96	-703.95	6.00	28.20
SJPA250800KD	-800.00	250.00	-414.82	-804.52	6.90	26.18
SJPA250900KD	-900.00	250.00	-466.67	-905.27	8.00	25.05
SJPA2501000KD	-1000.00	250.00	-518.52	-1006.26	9.50	28.45
SJPA2501100KD	-1100.00	250.00	-570.37	-1107.90	12.00	25.87
SJPA2501200KD	-1200.00	250.00	-622.63	-1209.88	15.00	27.69
SJPA3001000KD	-1000.00	300.00	-518.52	-1006.59	10.00	32.17
SJPA3001200KD	-1200.00	300.00	-622.63	-1207.90	12.00	30.35
SJPA3001400KD	-1400.00	300.00	-725.93	-1409.22	14.00	29.67
SJPA3001600KD	-1600.00	300.00	-829.64	-1610.54	16.00	29.67

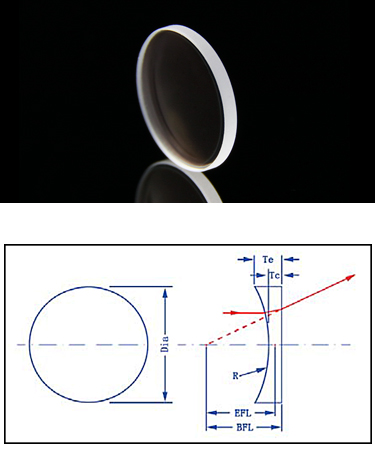

平凹透鏡

平凹透鏡具有負的焦距，被用于發散一束平行光。平凹透鏡則是一面是球面，一面為平面的。中間也薄于兩邊。

材質：L-BAL35、D-ZK3、L-BAL42 BK-7
設計波長：635nm、520nm、786nm 530nm、800nm、655nm
焦距公差：±1%
外形公差：+0.00/-0.10mm
厚度公差：±0.2mm
面型精度：優化后PV＜0.2μm
光潔度：60-40
偏　　心：＜90°
鍍　　膜：多種增透膜 A：400-700nm B：450-650nm C：515-550nm C：610-660nm D：700-1100nm
